SDR400 Ebyte Data Cofdm Receiver Hopping Digital Radio Module

Model Number : SDR400

Place of Origin : Guangdong, China

Brand Name : WDS/Sinosun

Supply Ability : 1000 Set/Sets per Month

Price : $199.00/sets >=1 sets

Type : Radio/Module

Contact Now

SDR400 Series speed Frequency Hopping Digital Radio Module for Industrial Applications
Product Overview

SDR400 Series Long distance, micro volume, low cost, 400/800 / 900MHz multi-band
High-speed Frequency Hopping Digital Radio(Module)
The SDR400 series of high-speed FM radio(modules) based on software radio (SDR) technology provide a small, reliable and reliable remote communication solution for low-cost, space-constrained applications. The same radio(module) can be set to select the work in the 400/900MHz or 800MHz band.
SDR400 series of high-speed frequency hopping digital radio (module) with long-range, high-speed reliable, low latency and secure data communication advantages. Supports full duplex serial communication and diagnostic communication. SDR400 series of high-speed frequency hopping digital radio (module) has a very high noise suppression, jamming exclusion and flexible frequency synthesis, digital modulation and matched filter detection technology. SDR400 series of high-speed frequency hopping digital radio (module) super-class performance and technical indicators, excellent resistance to electromagnetic jamming and reliable communication capabilities and advanced encryption communication function, is the industry's leading super digital transmission products.

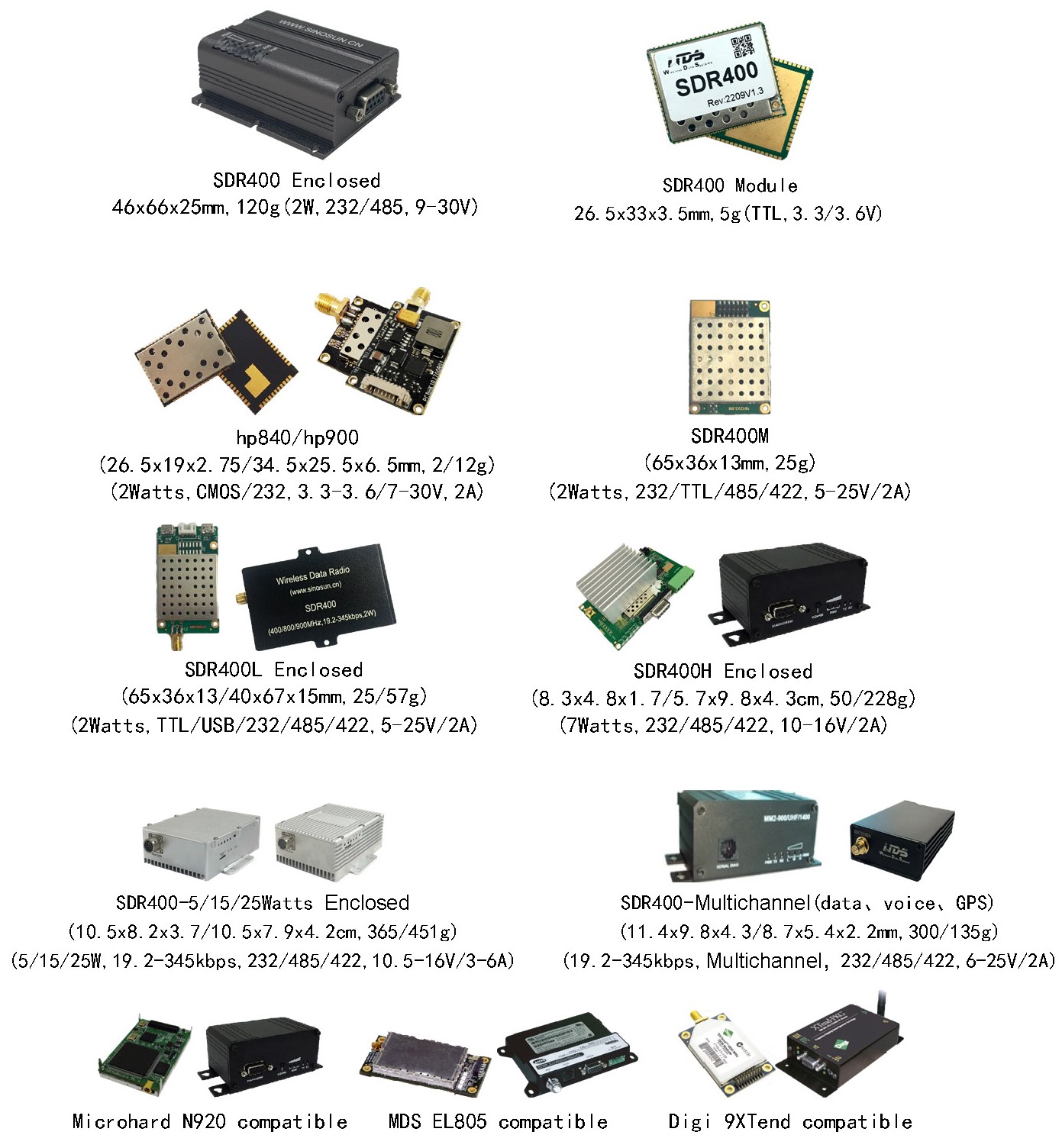

SDR400 Ebyte Data Cofdm Receiver Hopping Digital Radio Module
Product Paramenters
Wireless Specifications
Frequency
410-480MHz/840-845MHz/902-928MHz
Spereading Method/ Modulation Scheme
Frequency Hopping GMSK,2GFSK,4GFSK,QPSK
Forward Error Correction
Hamming,BCH,Golay,Reed-Solomon,Viterbi
Error Detection
32 bits of CRC,ARQ
Encryption
Optional(see-AES option)
Range
100km
Serial Interface
3.3V CMOS,RS232/485(Selectble)
Serial Baud Rate
300bps to 230.4kbps
Operating Modes
Point-to-Point,Point-to-Multipoint, TDMA,Store&For-ward Repeater, Peer-to-Peer
Signals Interface
RSSI LEDs,Tx/Rx LEDs,Reset ,Config, Wake-up,RSmode,4 Digital lnputs/ Outputs,1Analog lnput,1Analog Output
Remote Diagnostics
Battery Voltage,Temperature,RSSI, Packet Statistics
Rejection
Adjacent Channel @ 400 MHz:60 dB Alternate Channel @ 400 MHz:70 dB Adjacent Channel @ 900 MHz:57 dB Alternate Channel @ 900 MHz:65
dB
Core Voltage
3.3VDC is required for 1W
3.6VDC is required for 2W
Power Consumption (3.3V)
Sleep:＜1mA(Future)
dle: 20mA
Rx: 45mA to 98mA
Tx Peak: 2A
Connectors
Antenna:UFL
Data :80 Pin SMT
Environmental
-55℃~+85℃
5~95% humidity,non-condensing
Weight
Approx. 5 grams
Dimensions
Approx. 1.05"x1.3"x.13"
(26.5mm x 33mm x 3.5mm)
Approvals
FCC Part 15.247 Pending
IC RSS210 Pending
FCC Part 15.90 Pending
IC RSS119 Pending
CE Pending
Price(The specifications are different, the price is different)
2W SDR400 Module
$199/unit
2W SDR400 Enclosed
$299/unit
Performance:
400M/600M/800M/900M/1.4G/2.3G/2.4G/5.8GHz, transmitting power can be change, support NLOS high speed mobile transmission, open transmission distance of more than 50 km. 70Mbps data stream, adaptive dynamic bit allocation technique. Support one way 4K, multi way 1080P or 720P HD video. 3 serial port and 2 video interface running at the same time, flight controller, voice, GPS and other data can transmit with video. Support PtoP, PtoMP, MPtoMP technique,centerless of no-master/slave.Support VLAN. Local diagnostic interface, telnet, network management. Local and remote wireless firmware update through FTP. Low power consumption. Tiny volume, lightweight structure, body building for UAV.
Advantages:
70Mbps high-speed, long-distance transmission
Intelligent frequency selection/autonomous frequencyhopping anti-jamming
Point-to-point,Point-to-multipoint,Multipoint-to-multipoint
Multiple network + multiple serial
Compact/harsh environment applications
